MSQB-20R
ANRUK

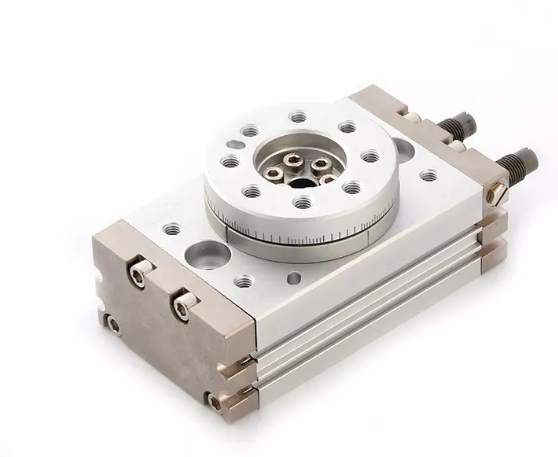

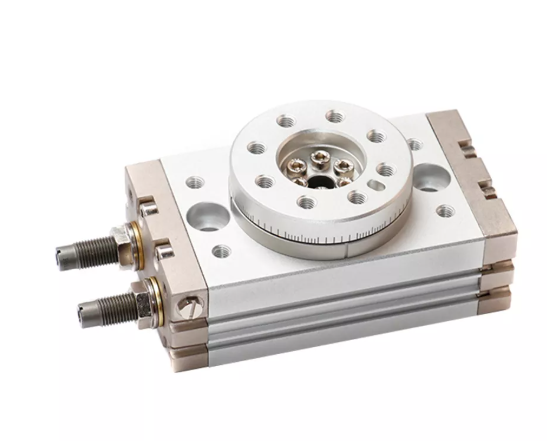

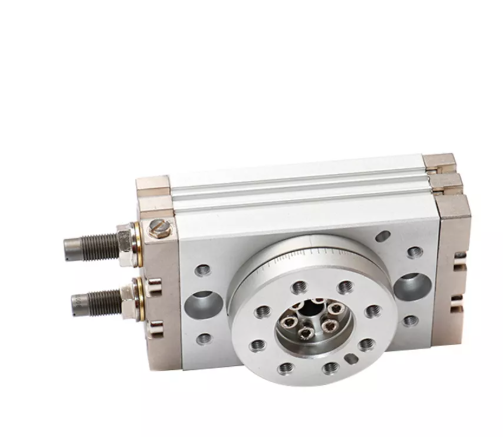

The MSQ Series 180° Magnetic Rotary Table with Adjustable Angle offers high precision and durability for industrial applications. It features a grease-reserving piston, a bumper to reduce impact, and various back protection modes for easy installation. The front and back covers use a riveted rolling packed structure for enhanced strength. Made from corrosion-resistant stainless steel, the cylinder ensures long-term reliability. Built-in magnets enable precise position feedback, and the adjustable angle screw allows for custom angle settings, providing flexibility for various needs.
Structure | Rotary Cylinder |
Power | Pneumatic |
Body Material | Aluminum alloy, stainless steel, brass |
Place of Origin | China |
Fluid | Air (Non-lube) |
Maximum operating pressure | 0.7 MPa |
Minimum operating pressure | 0.1 MPa |
Ambient and fluid temperature | 0 to 60°C (with no freezing) |
Maximum rotation | 190° |
Angle adjustment range | 0 to 190° |
Cylinder bore size | 6, 8, 12 |
Port size | M3*0.5, M5*0.8 |
Action | Double acting |
MOQ | 1 piece |
Heterogeneous Two-Way Close-Up Piston Structure The piston adopts a streamlined design with a grease reservation function, reducing maintenance needs and ensuring long-term efficiency.
Impact-Reducing Front Cover Equipped with a fixed bumper, the front cover minimizes impact during direction changes, enhancing stability and extending the service life of the cylinder.
Versatile Back Protection Modes The cylinder offers multiple back protection modes, making installation easier and more flexible for different mechanical setups.
Durable Riveted Rolling Packed Structure The front and back covers, along with the metal block, use a riveted rolling packed structure, ensuring a reliable and strong connection for superior durability.
The MSQ series rotary table, with its adjustable angle screw and built-in magnets, ensures high precision in automated systems like robotic arms and assembly lines. Its smooth rotation and precise control make it ideal for applications requiring exact positioning and minimal downtime.
Equipped with a front bumper to reduce impact, the MSQ rotary table offers stability during direction changes in manufacturing and packaging machinery. The stainless steel body ensures durability, making it suitable for high-speed, high-volume production environments.
The MSQ series provides versatile installation options with multiple back protection modes, making it a reliable choice for R\&D applications. Its durable construction and precise angle adjustment capabilities allow for flexible use in testing, prototyping, and experimental setups.
