Choosing the correct pneumatic air cylinder is not just a technical decision—it’s a vital part of ensuring your automation system runs efficiently and reliably. Whether you're building a high-speed packaging line or integrating new motion components into a robotic arm, the wrong cylinder can lead to performance issues, maintenance headaches, and costly delays. This guide is crafted to help you make the right choice from the beginning by outlining what to consider and how to match a cylinder to your exact needs. At Wenzhou Ang Rui Machinery Co., Ltd., we understand that successful automation depends on precision components like pneumatic air cylinders, and we’re here to help you make informed choices.
The first step in selecting a pneumatic air cylinder is understanding the exact specifications your project demands. Start by calculating the required force. This depends on the load and the operating pressure of your compressed air system. The bore size of the cylinder directly influences the force output, and selecting the wrong size could result in underperformance or energy inefficiency.
Next, determine the stroke length—how far the piston needs to move. Too short a stroke may not complete the required motion, while too long can add unnecessary cost and footprint. Also, consider mounting style: whether the application benefits from front flange, rear clevis, or foot mounts. Proper mounting ensures stability and optimal alignment, both of which affect performance and longevity.
Different operations require different motion dynamics. Push-type applications, such as extending a tool or part into position, require forward thrust. Pull applications, such as retracting a fixture or resetting a position, depend on return force. In holding tasks, the cylinder may need to maintain pressure against a load for a set duration. Make sure your chosen pneumatic air cylinder can handle the directional force consistently without compromising seal integrity or internal wear.
Standard round-body cylinders are lightweight, compact, and easy to install—ideal for light-duty, space-constrained applications. Their anodized aluminum construction often makes them corrosion-resistant, which is especially helpful in food or cleanroom environments.
Tie-rod cylinders, on the other hand, are more rugged. They use external rods to secure the end caps to the barrel, making them highly durable under high-pressure and heavy-load conditions. For industrial settings like presses or metal stamping, tie-rod designs provide longer service life and better rebuild options.

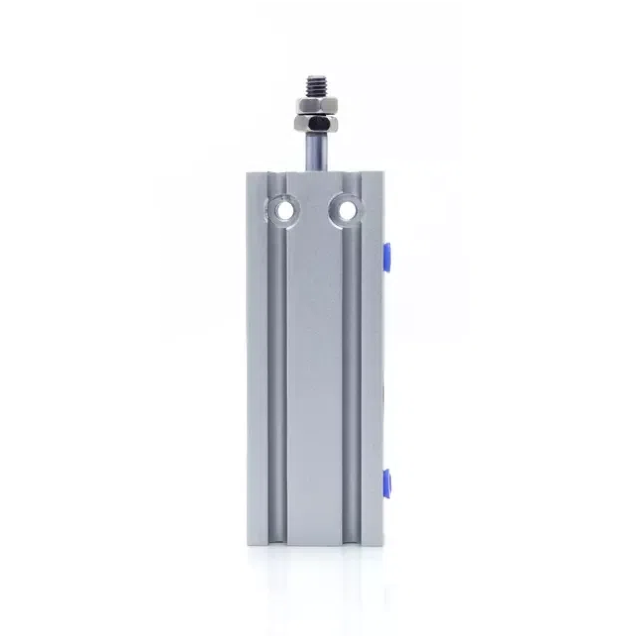

For tight spaces, compact pneumatic air cylinders offer powerful strokes in a condensed form. They're commonly found in automation modules where space-saving is crucial. Rodless cylinders are ideal when space constraints limit the piston’s extension—these use an internal carriage to move loads along the cylinder body, making them perfect for applications like linear transport or large panel positioning.
Rotary cylinders convert linear air pressure into rotational motion. If your application involves turning, indexing, or controlled rotation—such as automated doors or material feeders—rotary pneumatic cylinders are the best choice.
Speed is a key performance indicator, particularly in applications involving repetitive motion like packaging or bottling. Pneumatic air cylinders with higher cycle rates improve throughput, but only if the system is designed to manage quick actuation without sacrificing control. Consider adjustable cushioning at the ends of stroke to soften impact and reduce wear during rapid cycles.
Standard operating pressure for pneumatic systems is typically around 6 bar (87 psi), but this can vary. Cylinders should be selected to operate efficiently within your system’s pressure range, with a suitable safety margin. Oversizing for high-pressure applications may seem safe but can lead to air wastage and increased operating costs.
Air consumption is another factor—more volume per stroke means higher compressor demand. Selecting a cylinder with an appropriate bore-to-load ratio helps maintain energy efficiency while still achieving the desired motion.
Don’t overlook your working environment. For example, if your cylinder operates in a corrosive or wet setting, such as in marine applications or food processing plants, choose a model with stainless steel components and appropriate seals. High-heat environments may require specialized materials, such as Viton or Teflon seals, to avoid performance degradation.
Cleanroom and pharmaceutical settings require cylinders with minimal particle emission and smooth, washable surfaces. Meanwhile, dusty, abrasive environments call for additional sealing and wipers to keep contaminants out.
In automated packaging lines, speed, precision, and reliability are paramount. Pneumatic air cylinders are used to control conveyors, push products into place, or activate sealing jaws. Compact models with fast cycle rates and low maintenance demands are particularly suitable here.
These systems require cylinders that can offer accurate positioning, high repetition accuracy, and smooth motion. Rodless or guided cylinders are often preferred for their stability and space efficiency. Here, the correct cylinder improves both precision and production consistency.
In high-force applications like stamping, cutting, or clamping, durability and power are non-negotiable. Tie-rod cylinders are the go-to solution thanks to their structural integrity and ability to withstand high pressures. Reinforced seals and long-stroke designs help meet the demands of heavy industrial workloads.
Proper maintenance begins with high-quality components. Pneumatic air cylinders require reliable seals to prevent leakage and ensure smooth motion. Lubrication—either built-in or system-supplied—reduces internal wear, while clean, dry air prevents contamination and corrosion.
Adding inline air filters and lubricators enhances lifespan. Contaminated air is the leading cause of seal failure and actuator malfunction, so investing in quality filtration is a cost-effective decision.
Routine checks for air leaks, misalignment, or unusual noises can prevent bigger issues. Regular inspection of mounting bolts, air lines, and cushioning mechanisms ensures long-term reliability. Schedule periodic tests to check for wear in rods, bushings, and seals.
If your cylinder begins to drift, lose speed, or develop internal leaks, it may be time for a replacement. Excessive play in the piston rod or inconsistent stroke lengths are also red flags. Addressing these issues early helps avoid system-wide downtime or secondary component damage.
Selecting the right pneumatic air cylinder means more than matching size and stroke—it requires a deep understanding of your operational needs and environmental factors. From compact units for automation to heavy-duty tie-rod designs for industrial use, the right choice enhances both efficiency and reliability.
At Wenzhou Ang Rui Machinery Co., Ltd., we specialize in producing a wide range of high-quality pneumatic components, including air cylinders, fittings, hoses, and valves. With ISO9001:2000 certification and compliance with RoHS and FDA standards, our products are trusted across industries for their durability and performance. Contact us today to explore our full product line and let our expert team help you choose the ideal pneumatic air cylinder solution for your application.
Pneumatic air cylinder selection has never been easier—partner with Wenzhou Ang Rui Machinery Co., Ltd. and build a smarter, more efficient system.
