Have you ever wondered why solenoid valve fail? Wiring errors cause most problems. A solenoid valve controls fluid or air flow, enabling precise operation. In this guide, you'll learn safe wiring steps for irrigation, pneumatic, and pump systems, helping you avoid leaks and malfunctions.
A solenoid valve is an electromechanical device that controls fluid or air flow. When an electric current passes through its coil, it generates a magnetic field that moves the valve spool, opening or closing the flow path. Solenoid valves come in various types, including AC and DC versions, and 2-way or 3-way designs. Each type serves a specific function, from simple on/off control to more complex directional flow management.
A solenoid valve typically consists of a coil, valve body, spool, spring, and terminal connections. The coil generates the electromagnetic force, while the spool moves to control the flow. Terminal connections provide points for wiring to the power source and control circuits. Understanding these components is key before attempting wiring, as incorrect connections can lead to electrical faults or mechanical failure.
Before wiring, turn off the power supply and depressurize any fluid or pneumatic system. Grounding and insulation are mandatory to prevent shocks and shorts. Always check for nearby conductive materials that could accidentally contact live terminals. By prioritizing safety, you reduce risks to both personnel and equipment during installation.
Selecting the right solenoid valve involves matching voltage, type (AC/DC), and port numbers to your application. For example, irrigation systems often use DC solenoids, while industrial pneumatic valves may rely on AC configurations. Incorrect selection can cause operational issues or damage to the system, so reviewing product specifications before purchase is essential.
Use wires with appropriate gauge and insulation, especially in multi-valve setups. Multi-core cables simplify wiring for multiple solenoids, while single-core wires may suffice for isolated valves. Essential tools include wire strippers, screwdrivers, pliers, and connectors. High-quality connectors prevent loosening due to vibrations or environmental factors.
Table 1: Recommended Wire Gauge for Solenoid Valves
Number of Valves | Wire Type | Core Count | Notes |
1-2 | Multi-core | 3 | Suitable for small irrigation setups |
3-4 | Multi-core | 5 | Allows daisy-chaining multiple valves |
5-6 | Multi-core | 7 | Prevents voltage drop over long distances |
7-8 | Multi-core | 9 | Ideal for large irrigation zones |
Solenoid valves typically indicate terminals with symbols like +, -, and ground. Understanding the diagram helps differentiate between common and control wires. The wiring diagram also shows whether valves should be connected in parallel, series, or daisy-chained. Reading and interpreting diagrams before wiring avoids misconnection and saves troubleshooting time.
Irrigation systems often use multiple solenoid valves controlled by a central controller. Connect the common wire from all valves to the controller’s common terminal. Then, attach each zone wire to its corresponding valve. Use waterproof joiners and heat-shrink connectors to prevent moisture-related shorts. Daisy-chaining wires may be necessary for distant valves, maintaining consistent current and signal across the system.

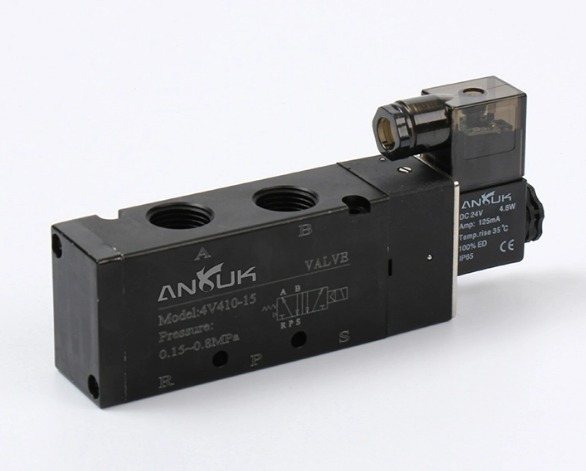

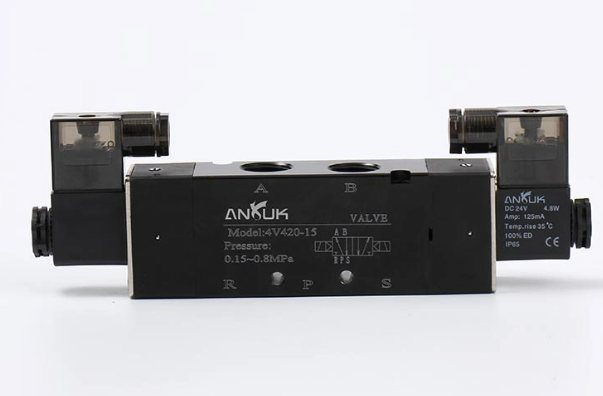

For pneumatic applications, remove the solenoid coil for easier access to terminals. Connect power supply wires according to the coil’s polarity markings. Seal all air fittings and silencers to prevent leakage. Ensure that wiring does not obstruct moving parts and that cables are secured away from high-temperature surfaces or sharp edges.
When connecting solenoids to pumps, match the solenoid’s voltage rating to the pump’s supply. Connect control wires to the pressure switch terminals as indicated in the wiring diagram. Verify the polarity for DC systems and ensure that AC systems use appropriate relays if needed. Ground all metal components to maintain electrical safety and prevent damage to the pump system.
DC solenoids require correct anode and cathode connections. AC solenoids are less polarity-sensitive but may need relays for integration with control circuits. Miswiring either type can cause overheating, failure to actuate, or reduced lifespan. Always double-check voltage and current ratings before applying power.
Intermittent operation, buzzing noises, or valves failing to respond often point to loose or poorly secured connections. Re-strip wires carefully, tighten terminal screws, and ensure connectors are firmly seated. Regular inspections help identify potential problems early and prevent system downtime. Using locking washers or cable ties can secure wiring further and reduce the risk of mechanical loosening over time, especially in environments with vibrations or frequent handling. Consistent maintenance ensures reliable operation across all solenoid valves in your system.
Voltage issues or faulty solenoid coils are common causes of malfunctioning valves. Measure voltage at the terminals to confirm it matches the solenoid’s rated specifications. If the coil is damaged or shows resistance inconsistencies, replacement may be necessary. Applying incorrect voltage can overheat or permanently damage the coil, leading to failure. Regularly testing voltage and continuity ensures long-term reliability and helps prevent unexpected downtime, particularly in critical systems such as irrigation, pneumatic, or pump applications.
Short circuits can occur if wire insulation is damaged or if grounding is insufficient. Inspect all wiring for wear, cracks, or exposed conductors. Maintain proper separation between power and ground wires to prevent accidental contact. Effective grounding allows excess current to safely dissipate, protecting equipment and personnel from electrical hazards. In addition, using insulated connectors and heat-shrink tubing adds an extra layer of protection, ensuring that the solenoid valve system operates safely even under adverse environmental conditions.
Incorrectly daisy chaining multiple valves in series can lead to uneven operation and voltage drops. Verify continuity using a multimeter and check wire routing against the solenoid valve wiring diagram. Ensure each valve receives adequate voltage and that the common wire is properly shared across all devices. In larger systems, consider multi-core cables to maintain consistent current distribution and prevent signal interference. Proper planning of daisy chain connections minimizes operational issues and ensures that all valves actuate reliably, maintaining system performance.
Table 2: Troubleshooting Checklist
Issue | Possible Cause | Solution |
Valve not actuating | Loose connection | Tighten terminals and inspect wiring |
Buzzing noise | Improper voltage | Measure and correct supply voltage |
Short circuit | Damaged insulation | Replace wires or improve insulation |
Uneven operation in series | Daisy chain error | Re-route wires and verify continuity |
Valve operates intermittently | Mechanical vibration | Use locking washers, cable ties, or supports |
Before full system operation, gradually energize the solenoid valves and observe their response. Ensure all valves open and close smoothly without leaks or unexpected noises. Confirm that mechanical connections, such as fittings and terminals, remain secure after initial actuation. Pay attention to any abnormal vibrations, sparks, or overheating. This cautious start prevents damage to components and helps detect wiring mistakes before full-scale operation, reducing costly downtime and improving system reliability.
For irrigation systems, activate each zone individually to verify proper water flow and correct timing. In pneumatic setups, ensure cylinders extend and retract smoothly under pressure. Pump systems should respond to pressure switches promptly, maintaining consistent fluid delivery. Documenting test results, including valve response times and any anomalies, provides a reference for future maintenance and troubleshooting. Conducting system-specific testing ensures the solenoid valves function harmoniously with the overall automation or control system.
Regular safety verification is essential to prevent accidents and maintain system longevity. Inspect all wiring for overheating, frayed insulation, or loose connections. Confirm that grounding paths are continuous and effective. Test emergency shutoff mechanisms and manual overrides to ensure they work as intended. Consistently performing these safety checks minimizes the risk of electrical faults, equipment damage, or operational hazards, ensuring both personnel safety and system reliability in long-term operation.
Inspect wires and connectors every few months for signs of wear, corrosion, or loosening. Promptly replace damaged or frayed wires to avoid operational interruptions. Keeping wiring organized reduces confusion during maintenance or system expansion. Use cable ties, labeling, or color-coded wires to make inspection easier. Proactive monitoring prevents small issues from escalating into system failures, ensuring long-term reliability for irrigation, pneumatic, and pump systems.
Dust, moisture, or corrosion can affect solenoid coils and connectors. Clean or replace components regularly to maintain proper operation. In humid environments, apply dielectric grease to connectors and use moisture barriers to prolong wire and connector life. Regular cleaning prevents buildup that could interfere with electrical signals or mechanical movement. A clean and well-maintained system reduces downtime and ensures consistent valve performance under varying environmental conditions.
When expanding systems or adding new zones, use labeled multi-core cables to simplify connections and prevent miswiring. Color-coded wires combined with detailed documentation improve maintenance efficiency and reduce errors. Plan cable routing to minimize bends, tension, or exposure to harsh environments. Upgrading wiring thoughtfully ensures scalability, consistent performance, and long-term reliability for complex solenoid valve systems, whether used in irrigation, industrial automation, or pressure control applications.
Multi-core cables significantly reduce wiring clutter and simplify installation in systems with multiple solenoid valves. They provide consistent voltage and signal distribution across all valves, reducing the risk of uneven operation. Organizing wires by function or zone minimizes troubleshooting time and potential errors. In large irrigation or industrial automation systems, multi-core cables improve efficiency and create a safer, more manageable wiring layout for technicians.
Proper labeling and documentation are critical for efficient maintenance and system expansion. Keep updated wiring diagrams and clearly mark each wire for easy identification. A systematic labeling approach reduces mistakes when troubleshooting or adding new valves. Maintaining accurate records ensures technicians can quickly understand the wiring setup, saving time and minimizing errors in complex or multi-zone solenoid valve systems.
For solenoid valves located in hard-to-reach areas, use extension wires safely and route them away from sharp edges or high-temperature zones. Secure wires with clips or cable ties to prevent accidental disconnections. Proper planning and protection of extension wiring maintain operational reliability while reducing the risk of damage. This approach ensures remote valves operate consistently without compromising system safety or efficiency.
Integrating solenoid valves with controllers, timers, or DCS systems enhances automation and operational control. Correct wiring ensures reliable communication between the solenoid valves and the control system. Verify that control signals align with the solenoid’s voltage and type before connection. Proper integration prevents faults, ensures precise valve actuation, and supports seamless automation, whether for irrigation, pneumatic, or pump-based operations. Well-executed wiring provides long-term system efficiency and reliability.
Properly wiring a solenoid valve ensures safe and reliable operation. Following diagrams and checking voltage and grounding prevents faults. Wenzhou Ang Rui Machinery Co., Ltd. offers high-quality solenoid valves that enhance system efficiency and longevity, providing dependable solutions for irrigation, pneumatic, and pump applications.
A: A solenoid valve is an electromechanical device that controls fluid or air flow using an electromagnetic coil. When energized, it opens or closes the valve, enabling precise system control.
A: Use a solenoid valve wiring diagram to connect common and zone wires. Waterproof connectors and daisy-chaining distant valves help ensure consistent performance.
A: Yes, follow a DC solenoid valve wiring guide. Ensure correct polarity, match voltage to the valve rating, and secure connections to avoid short circuits.
A: Check for loose connections, incorrect voltage, or grounding issues. Solenoid valve wiring troubleshooting tips suggest tightening terminals and verifying power supply.
A: Essential tools include wire strippers, screwdrivers, pliers, and waterproof connectors. Multi-core cables simplify wiring multiple valves efficiently.
A: Mistakes include loose connections, reversed polarity on DC valves, improper daisy-chaining, and ignoring the wiring diagram. These can cause uneven operation or valve failure.
A: Prices vary by type, voltage, and application. High-quality valves from Wenzhou Ang Rui Machinery Co., Ltd. offer reliable performance for irrigation, pneumatic, and pump systems.
A: Yes, they can integrate with controllers or DCS systems. Correct wiring ensures accurate operation and prevents system faults.
A: Inspect wires and connectors every few months. Cleaning, tightening, or replacing components helps maintain reliable operation and prevents downtime.
A: DC valves require attention to anode and cathode polarity. AC valves are less polarity-sensitive but may need relays for integration with control circuits.
