Is your sprinkler acting strange, with water running continuously or some zones staying dry? A failing solenoid valve may be the cause, disrupting your irrigation system and increasing water waste. In this guide, you will learn how to check a solenoid valve using simple tests, recognize the signs of failure, and follow safe steps to repair or replace it. By understanding these procedures, you can protect your lawn, ensure even watering, and avoid costly repairs.
A malfunctioning solenoid valve often gives early warning signs. Recognizing these can save water, reduce frustration, and prevent damage to your sprinkler system. Observing system behavior carefully can help you determine whether the issue lies with the solenoid, wiring, or mechanical components.
If your sprinklers continue to run after the scheduled stop time, the solenoid may be stuck open. A stuck plunger or diaphragm can allow water to flow continuously, even when no electrical signal is present. Sediment or corrosion may also prevent the plunger from sealing properly. Over time, this can lead to water wastage, soil erosion, or damage to sprinkler heads.
When a particular zone fails to activate, the solenoid coil could be burned out, the wires damaged, or the circuit open. Other zones functioning normally suggest the problem is localized to a specific valve or wiring segment. Identifying this early can prevent dry spots and ensure your entire lawn receives adequate water.
While a single click is normal when a valve activates, constant clicking or faint buzzing can indicate a weak or shorted solenoid coil. The solenoid may be receiving power but is unable to generate sufficient magnetic force to move the plunger, preventing proper operation of the valve and consistent water flow.
Uneven spray patterns or low-pressure water flow can be caused by partial blockage in the diaphragm or a failing solenoid. This leads to dry patches, overwatered areas, or inconsistent lawn coverage. Regular inspection of the solenoid valve and diaphragm can prevent prolonged uneven watering and ensure your irrigation system performs optimally.
Tip: Uneven watering often signals a partial obstruction in the valve rather than sprinkler heads themselves. Inspect both solenoid and diaphragm first to locate the root cause.
Before calling a professional, performing some basic diagnostic checks can help you identify the issue. This irrigation sprinkler valve solenoid troubleshooting guide covers electrical, mechanical, and manual checks to isolate the problem efficiently.
Always turn off the irrigation controller and close the main water supply before performing any tests. Use insulated tools and dry gloves to prevent electric shocks. Never work in standing water or wet conditions when testing electrical components. Prioritizing safety protects both you and your equipment while performing these essential checks.
Open the valve box and visually inspect the solenoid and surrounding area. Look for pooling water, damaged wires, scorch marks, or loose fittings. Wiggle the solenoid gently to ensure it is secure. Obvious physical damage, such as cracks or corrosion, may indicate the solenoid needs replacement before further testing.
Remove the solenoid cap and manually press the plunger up and down. A smooth, free-moving plunger indicates the valve is not mechanically jammed. If the plunger sticks, feels gritty, or does not return to position, debris or wear is likely obstructing movement. Cleaning or replacing the plunger often restores proper function.
Manually activate a zone from your irrigation controller while observing the solenoid. Listen for clicks and verify water flow. If the solenoid fails to respond, compare with other zones to determine whether the issue is with the valve itself or the controller circuitry. This step helps isolate electrical from mechanical problems.
Set a multimeter to AC voltage and measure across the valve wires while the zone is active. Expected readings typically range from 22–26 VAC for most residential systems. A reading significantly lower or zero indicates wiring issues or a problem with the controller rather than the solenoid itself. Accurate voltage testing helps pinpoint electrical faults.
Disconnect the solenoid wires and measure resistance using a multimeter. Most residential solenoids fall within a 20–60 Ω range, although some designs vary.
● Open reading (∞) suggests a broken coil.
● 0 Ω reading indicates a shorted coil.
● Values within the expected range suggest the coil is functioning correctly.
If a spare solenoid is available, swapping it into the valve can confirm whether the original solenoid is faulty. Alternatively, briefly energize the solenoid using a 24 VAC bench power source and observe a clear click. If the solenoid fails to respond, replacement is necessary.
Test Type | Expected Result | Possible Issue |
Voltage Test | 22–26 VAC | Low or no voltage = wiring/controller fault |
Resistance Test | 20–60 Ω | Open = bad coil, 0 Ω = short |
Manual Test | Smooth movement | Sticky plunger = debris or wear |
To measure controller voltage safely, set your multimeter to AC volts. Touch one probe to the common (COM) terminal and the other to the station terminal. Activate the zone manually and expect readings near 24 VAC. Normal readings here but low voltage at the valve suggest a wiring issue between the controller and solenoid.
Measure AC voltage at the solenoid wires directly. Differences from controller readings often indicate a voltage drop caused by corroded connectors, long wiring runs, or partial shorts. Correct identification ensures only the necessary component is replaced, avoiding unnecessary labor or parts costs.
Disconnect both wires from the solenoid and measure resistance with a multimeter. Compare the reading to manufacturer specifications. An open or shorted coil confirms the solenoid is defective and should be replaced, while borderline readings may require a temporary swap test to confirm functionality.
For advanced testing, apply a short 24 VAC pulse to the solenoid coil. A functional solenoid will click audibly as the plunger moves. No response indicates a burned or stuck coil. Limit energizing time to prevent overheating and always keep test leads insulated.
When electrical tests are normal, the problem often lies in the valve’s internal components. Mechanical checks ensure proper water flow and valve operation.
Remove the valve cover and inspect the rubber diaphragm for tears, folds, or embedded debris. Clean it gently with water and a soft brush. A damaged diaphragm must be replaced immediately to restore proper water regulation and prevent leaks that can stress your irrigation system.
Flush the valve body to remove any sediment that could obstruct flow. Areas with hard water or older piping often accumulate mineral deposits. Avoid harsh chemicals that can degrade rubber seals and cause further failures. Regular cleaning reduces the risk of uneven watering and continuous flow issues.
Check the solenoid plunger and spring for rust, wear, or deformation. The plunger should slide freely and return quickly. Corrosion or weak springs prevent proper movement, causing stuck valves or inconsistent activation. Replacing worn components restores reliability.
Reassemble the valve carefully, ensuring gaskets and O-rings are seated correctly. Conduct a short test cycle to check for leaks and proper water flow. Even pressure across all sprinkler heads confirms that the valve and solenoid are functioning correctly after maintenance.
A solenoid that feels hot or shows burn marks may have shorted. This can trip breakers or damage the controller. Replace the solenoid immediately and inspect all wiring for corrosion, frayed insulation, or loose connections. Ignoring this can lead to system-wide failures.
If water continues flowing without electrical power, the plunger may be mechanically stuck. Cleaning may resolve the problem, but persistent binding usually means replacement is necessary. A properly functioning plunger ensures precise water regulation and prevents water waste.
Tears or hardening in the diaphragm cause uneven watering and reduced pressure. Inspect the diaphragm for cracks or folds, and replace it when needed. A faulty diaphragm can mimic solenoid failure, making inspection critical before electrical replacements.
Damaged wires, corroded connectors, or a failing controller prevent valves from opening or closing consistently. Inspect connections and test continuity to identify faults. Waterproof terminals and proper labeling extend system longevity and simplify future maintenance.
Failure Mode | Main Symptom | Recommended Fix |
Electrical short | Hot or burnt solenoid | Replace coil, inspect wiring |
Stuck plunger | Continuous water flow | Clean or replace solenoid |
Diaphragm tear | Uneven pressure | Replace diaphragm |
Wiring fault | No voltage at valve | Repair wiring or controller |
If resistance testing indicates a failed coil, replacing the solenoid is cost-effective. Most residential solenoids are simple to remove and install, taking only minutes without specialized tools. Replacement ensures the system functions reliably without replacing other components unnecessarily.
Leaks, cracks, or multiple failing components suggest replacing the entire valve assembly. Older valves with extensive wear are often more economical to replace than repair. Proper replacement restores performance and prevents recurring maintenance issues.
Complex wiring issues, intermittent faults, or buried conduits require professional tools and expertise. Licensed technicians can safely diagnose problems that DIY testing cannot fully resolve, ensuring your irrigation system remains reliable.
Check your system specifications carefully:
● Voltage: 24 VAC for most residential systems
● Thread size: match valve housing
● Normally closed vs. open configuration
● Coil resistance within manufacturer’s recommended range
Flush all valves, drain water, and store controllers safely at the end of each season. Winterization prevents freeze damage, sediment buildup, and prolongs solenoid and valve life.
Inline filters reduce debris entering valves, while surge protectors prevent electrical burnout. These small preventive measures significantly extend solenoid lifespan and reduce emergency repair costs.
Check connectors for corrosion and tightness twice yearly. Use waterproof wire nuts and label each valve wire clearly to simplify troubleshooting and future upgrades. Proper wiring maintenance minimizes unexpected failures.
Keep a log of resistance readings, solenoid replacements, and testing dates. Test zones periodically to ensure consistent performance. Documentation helps identify trends, prevent failures, and streamline repairs when issues arise.
Maintenance Task | Frequency | Purpose |
Visual inspection | Every season | Detect leaks early |
Resistance check | Annually | Identify coil degradation |
Cleaning flush | Twice a year | Remove sediment and debris |
Winterization | End of season | Prevent freeze damage |

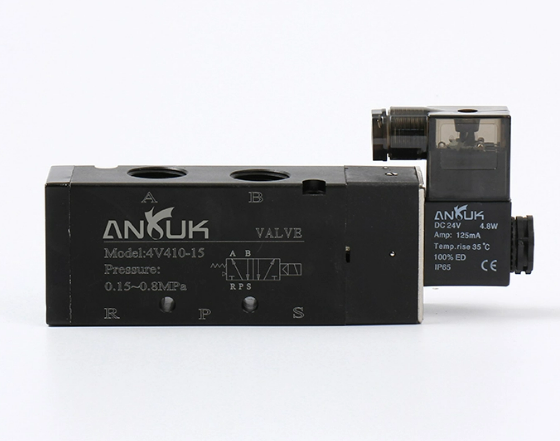

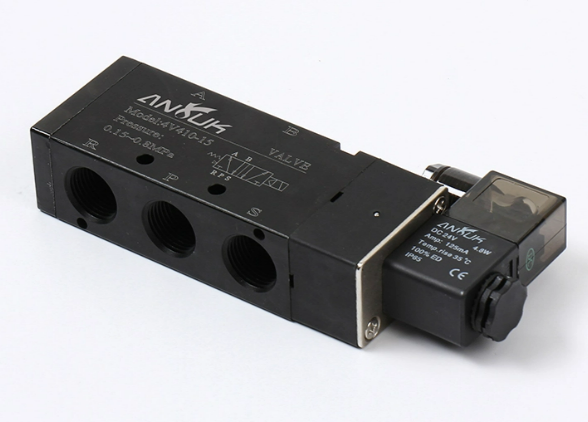

To tell if a sprinkler valve solenoid is bad, start by observing system symptoms and following a safety-first DIY checklist. Test electrical and mechanical components, inspect the diaphragm and plunger, and replace faulty solenoids promptly. Wenzhou Ang Rui Machinery Co., Ltd. offers reliable solenoid valves that ensure precise irrigation control, long-lasting performance, and easy installation, helping maintain healthy lawns efficiently.
A: A solenoid valve controls water flow in irrigation systems. It receives electrical signals from the controller to open or close, ensuring accurate watering schedules.
A: Common signs include continuous water flow, zones not opening, buzzing noises, or uneven pressure. Following a sprinkler valve solenoid bad signs and fix checklist helps identify the issue.
A: Use a multimeter to check voltage and coil resistance. Activate the zone from the controller and observe the valve’s response. This simple DIY step follows an irrigation sprinkler valve solenoid troubleshooting guide.
A: Measure the coil resistance with a multimeter. Typical residential solenoids read 20–60 ohms. An open or short reading indicates a faulty solenoid valve that needs replacement.
A: Low or no voltage at the solenoid valve, a stuck plunger, or debris in the valve can prevent water flow. Use the sprinkler valve solenoid resistance check to isolate the cause.
A: Minor debris or diaphragm issues can be cleaned. If the coil tests open or shorted, replacing the solenoid valve is the most reliable solution.
A: Residential solenoid valves typically cost $10–$40. Replacement is quick, and quality valves ensure reliable, long-term irrigation performance.
A: Regular inspection, seasonal flushing, using inline filters, and surge protection extends solenoid life. Logging maintenance also helps with troubleshooting and replacement planning.
A: It provides step-by-step checks for electrical, mechanical, and controller issues, helping you identify if the solenoid valve is faulty and whether repair or replacement is needed.
