A solenoid valve controls fluid flow using electricity. It improves automation and safety in many systems. In this article, you will learn how solenoid valves work, their functions, and practical applications for industry and home use.
Solenoid valves operate by converting electrical signals into mechanical action. When an electric current energizes the coil, it generates a magnetic field that moves the plunger inside the valve. This movement opens or closes the valve orifice, controlling fluid passage. This process makes them faster and more reliable than purely manual valves, especially in automated systems. Understanding this conversion clarifies the solenoid valve mechanism explained in industrial and agricultural applications.
The solenoid valve function primarily revolves around controlling flow. It can allow or restrict the passage of liquids or gases depending on the energized state. Valves can be configured as normally open (NO) or normally closed (NC), determining their default state when power is off. This versatility enables precise control in processes requiring rapid or repeated fluid modulation. Engineers can select configurations to match the operational safety and automation requirements of their systems.
Some solenoid valves operate simply as on/off devices, while others manage directional flow using multiple ports. 2/2-way valves have one inlet and one outlet, ideal for straightforward open/close tasks. 3/2-way and 5/2-way valves allow more complex routing, directing fluid to different pathways in pneumatic or hydraulic systems. This multi-way functionality increases system flexibility and control precision, particularly in automated machinery or irrigation systems.
Solenoid valves also maintain pressure levels, preventing system overpressure or hazardous situations. By opening or closing at controlled intervals, they regulate system flow and maintain operational consistency. In gas or chemical applications, they act as safety devices, automatically shutting off flow in case of leaks or malfunctions. This dual function of control and protection makes them invaluable in industrial and home systems.
Direct-acting valves rely entirely on the solenoid’s magnetic force to move the plunger. They function independently of system pressure and are suitable for low-flow or low-pressure applications. Their design allows precise control, though they require full electrical power to operate. They are commonly used in laboratory equipment, small irrigation setups, and low-capacity industrial machines.
Pilot-operated valves use the system’s fluid pressure to assist the plunger movement. This allows the use of smaller coils, reducing energy consumption while enabling higher flow capacities. They are ideal for high-pressure systems, large irrigation networks, and industrial fluid management. Proper installation is crucial, as insufficient pressure may prevent the valve from operating correctly.
Latching solenoid valves require only a short electrical pulse to change their state. They remain open or closed without continuous power, offering energy-efficient operation. These valves are perfect for battery-powered or remote applications, where continuous electrical supply is limited. Industries use them for remote irrigation control, automated doors, and mobile equipment where energy conservation is critical.

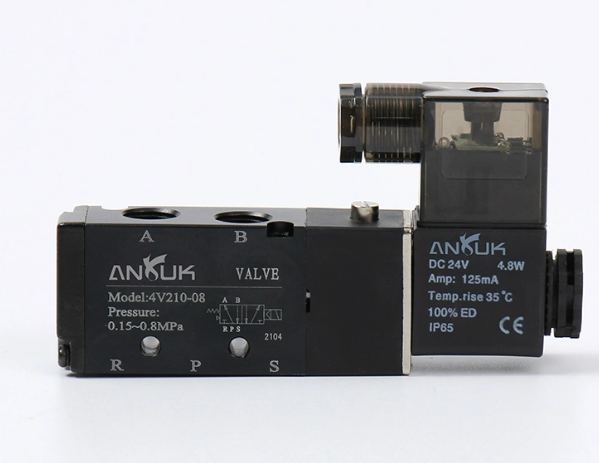

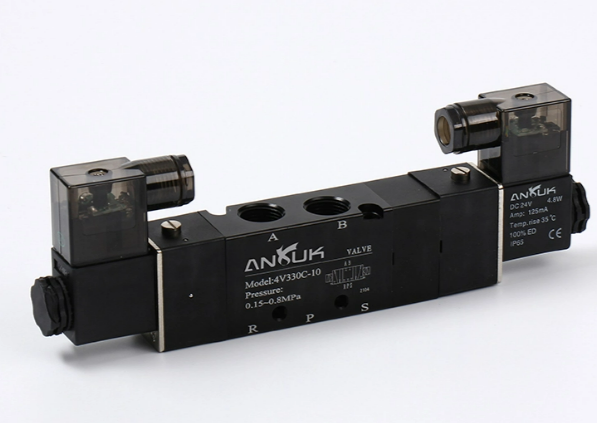

Multi-way valves manage complex actuator movements in pneumatic systems. For instance, 5/2-way valves control double-acting cylinders with precision, while 3/2-way valves redirect flow for simpler actuation. These valves increase system flexibility and reduce the number of individual valves required, simplifying maintenance and lowering costs.
Valve Type | Operation | Ideal Application | Power Requirement |
Direct-Acting | Magnetic force actuates plunger | Low-flow, low-pressure | Full coil power |
Pilot-Operated | Uses fluid pressure to assist movement | High-flow, high-pressure | Smaller coil |
Latching | Short pulse maintains state | Remote or battery-powered | Minimal |
Multi-Way | Controls multiple flow paths | Complex pneumatic systems | Medium |
In manufacturing, solenoid valves manage air, water, or coolant flow in production lines. They enable robotic systems and automated machinery to operate efficiently, minimizing human intervention. Their ability to precisely control flow ensures consistent product quality and reduces waste. Engineers often integrate solenoid valves into complex automated systems to streamline operations and maintain tight process tolerances.
Solenoid valves automate irrigation systems, allowing farmers to control water delivery precisely. They can be programmed for timed watering, zone control, and response to soil moisture sensors. This precision enhances crop yield, conserves water, and reduces labor costs. The combination of automation and remote monitoring makes solenoid valves essential in modern farming.
Solenoid valves regulate refrigerant and coolant flow in heating, ventilation, and air conditioning systems. By maintaining proper flow, they help control temperatures and optimize energy usage. Their responsiveness allows for rapid adjustments, ensuring comfort and system efficiency. In large-scale HVAC systems, multiple valves are coordinated to balance flow across zones.
Solenoid valves control the flow of water and chemicals in filtration plants. They manage dosing, filtration cycles, and water distribution, ensuring processes are safe and efficient. Proper valve selection prevents chemical overuse, leaks, or contamination, safeguarding both equipment and public health. Operators rely on solenoid valves for precise regulation in automated water treatment lines.
In vehicles, solenoid valves regulate fuel, brake, and cooling system fluids. In household appliances, they control water input in washing machines, dishwashers, and irrigation systems. This automation improves convenience, efficiency, and safety. Modern appliances depend on solenoid valves for consistent performance and compliance with safety standards.
Solenoid valves allow automated operation without manual interference. They can be integrated with sensors, PLCs, or other control systems for precise fluid management. This capability reduces labor costs and improves system responsiveness. Automated systems using solenoid valves achieve higher consistency and reduced downtime.
Many solenoid valves are designed to default to safe positions during power loss or emergencies. They prevent leaks, spills, and hazardous conditions in chemical, gas, and fuel systems. This fail-safe operation protects personnel, equipment, and the environment, reinforcing system reliability and compliance with safety regulations.
Solenoid valves enable accurate control of fluid flow and pressure. This precision minimizes waste, improves process outcomes, and maintains consistent quality. Industries like pharmaceuticals, food and beverage, and electronics manufacturing benefit from the exact regulation these valves provide. Precise actuation reduces errors and increases operational efficiency.
Latching valves and pilot-operated designs reduce energy consumption compared to continuous-duty systems. Lower power usage translates to cost savings, while reduced mechanical wear decreases maintenance requirements. Over time, investing in efficient solenoid valves improves ROI by balancing upfront cost with operational savings.
Selecting the correct solenoid valve requires careful assessment of system flow and pressure demands. Underperforming valves may create bottlenecks, reduce efficiency, or cause uneven fluid distribution. Conversely, oversized valves may increase energy consumption and reduce control precision. Accurate calculation of flow rates, pressure drops, and system dynamics ensures optimal valve performance. Additionally, verifying that the chosen valve can handle peak operating conditions prevents potential system damage, downtime, and maintenance issues. Proper sizing is critical for reliable, long-term operation in both industrial and home applications.
The electrical characteristics of a solenoid valve are crucial for safe and reliable operation. Voltage, current, and power ratings must align with the control system to prevent coil burnout or erratic behavior. Mismatched specifications can damage both the valve and connected equipment. Correct wiring, appropriate fusing, and adherence to installation instructions are essential for avoiding electrical hazards. Engineers should also consider AC versus DC compatibility, inrush current, and duty cycles to ensure the valve functions under both continuous and intermittent operation scenarios. Proper electrical integration improves lifespan and reduces operational disruptions.
Ensuring fluid compatibility is vital for maintaining the solenoid valve’s integrity. The valve material must resist corrosion, scaling, or chemical degradation from the specific liquids or gases it handles. Incompatible fluids can damage internal components, cause leaks, or result in complete valve failure. Always reference material compatibility charts when selecting valves for chemicals, water treatment, or industrial applications. For critical systems, consider testing small batches of the fluid against the valve components. Proper material selection enhances durability, reduces maintenance frequency, and ensures consistent performance across varying operating conditions.
Solenoid valves must be matched to the environmental conditions of their installation site. Temperature extremes, dust, moisture, and chemical exposure can all affect reliability and operational lifespan. IP ratings indicate the valve’s resistance to ingress from solids and liquids, while duty cycles determine its suitability for continuous or intermittent operation. Selecting valves rated for local environmental conditions prevents early failure, reduces maintenance needs, and ensures uninterrupted operation. For outdoor or industrial applications, additional protective enclosures or insulation may be required to safeguard against environmental stressors.
Routine inspections are essential to maintain solenoid valve efficiency and prevent unexpected failures. Checking coil function, plunger movement, seals, and external connections identifies wear or leakage before it impacts system performance. Inspections should follow a schedule based on operating hours, environmental exposure, and fluid type. Documenting inspection results helps detect trends and preemptively address issues. This proactive approach enhances reliability, reduces downtime, and extends the service life of the valve across industrial, agricultural, or domestic applications.
Regular cleaning and lubrication of solenoid valve components are necessary to ensure smooth operation. Debris, mineral buildup, or sediment can obstruct valve movement, causing sticking or delayed response. Using compatible cleaning agents prevents corrosion and maintains the integrity of seals and internal parts. Proper lubrication reduces friction between moving elements, extending operational lifespan and maintaining consistent actuation. For critical systems, establish a standardized maintenance routine with appropriate intervals to minimize the risk of failures and maintain precise flow control.
Timely replacement of worn components is key to sustaining system performance. Ignoring early signs of wear, such as sluggish operation or minor leaks, can escalate into costly shutdowns or equipment damage. Maintaining an inventory of critical spare parts and following manufacturer-recommended service intervals ensures operational continuity. Servicing components like coils, plunger assemblies, and seals according to guidelines enhances reliability, reduces unscheduled downtime, and safeguards both industrial and domestic systems from prolonged operational disruption.
Solenoid valves may encounter issues such as sticking, inconsistent flow, or coil failure. These problems often result from dirt, sediment, electrical surges, or mechanical wear. Identifying the root cause quickly and performing corrective actions restores system efficiency. Preventive maintenance, including cleaning, electrical checks, and timely component replacement, minimizes the recurrence of these issues. Operators should also monitor performance trends and address anomalies early to prevent extended downtime and costly repairs.
Selecting the appropriate solenoid valve begins with understanding the specific application requirements. Industrial, agricultural, and home systems each present unique demands regarding flow rate, pressure, fluid type, and environmental exposure. Evaluating these factors ensures the valve performs reliably under operational conditions. Matching the valve design, material, and configuration to its intended use enhances efficiency, reduces maintenance, and prolongs service life. Considering the complete system context allows for informed decision-making and minimizes operational risks.
Deciding between normally open (NO) and normally closed (NC) valves significantly impacts system safety and automation. NO valves allow fluid flow when de-energized, ensuring continuous operation during power loss, while NC valves default to a closed state, providing fail-safe protection. The correct choice balances operational needs, safety requirements, and automation goals. Engineers must also consider hybrid systems and mixed configurations to optimize process control. Proper selection reduces the likelihood of accidents and ensures predictable system behavior.
Balancing initial investment against long-term efficiency is essential when choosing solenoid valves. Higher-quality or energy-efficient designs may have higher upfront costs but provide reduced maintenance, lower energy consumption, and longer lifespan. Considering factors such as material durability, power requirements, and operational frequency helps optimize return on investment. Cost-effective selection minimizes unplanned expenditures and supports sustainable system operation over time, delivering both financial and operational benefits.
Following installation guidelines, avoiding overvoltage, and adhering to manufacturer-recommended maintenance practices extend valve lifespan. Staff training on proper handling, inspection, and troubleshooting ensures consistent system performance. Regular monitoring, documentation, and preventive maintenance prevent failures before they occur. Implementing these best practices allows operators to maximize reliability, optimize energy use, and maintain precise control over fluid systems, enhancing both safety and operational efficiency.
Solenoid valves control fluid flow in many systems. Understanding their function and operation ensures safe and efficient automation. Proper selection and maintenance improve performance and reduce costs. Wenzhou Ang Rui Machinery Co., Ltd. offers high-quality solenoid valves that provide reliable control and long-term efficiency, adding value to industrial and home applications.
A: A solenoid valve controls the flow of liquids or gases. It uses electrical energy to move a plunger, allowing precise automation in industrial and home systems.
A: Solenoid valves operate by converting electrical signals into mechanical motion. The energized coil creates a magnetic field that moves the plunger, opening or closing the valve.
A: The solenoid valve function is to regulate flow automatically. It enables on/off control, pressure management, and directional flow in various systems.
A: Solenoid valve applications include industrial automation, irrigation, HVAC systems, water treatment, and household appliances. They enhance efficiency and precision.
A: Types include direct-acting, pilot-operated, latching (bi-stable), and multi-way valves. Each type suits specific flow rates, pressures, and operational needs.
A: Regular inspection, cleaning, and lubrication prevent sticking, leakage, and coil failure. Understanding the solenoid valve mechanism explained ensures reliable operation.
A: Select based on flow rate, pressure, fluid type, and application. Consider NO or NC configuration, cost, and energy efficiency for optimal performance.
A: Solenoid valves provide automation, safety, precise flow control, energy savings, and remote operation. They improve reliability in industrial and home systems.
A: Issues include sticking, coil burnout, and inconsistent flow. Proper maintenance and understanding how solenoid valves work help prevent these problems.
A: By automating fluid control, reducing manual intervention, and regulating pressure and flow precisely, solenoid valves optimize performance and reduce energy waste.
