In any well-functioning pneumatic system, the humble fitting plays a crucial role. Often overlooked, pneumatic fittings are the connecting threads that ensure air tools perform reliably, safely, and efficiently. Whether it's in an automotive workshop, manufacturing line, or automation system, using the right fittings directly impacts performance and productivity. At Wenzhou Ang Rui Machinery Co., Ltd., we specialize in producing a wide range of high-quality pneumatic fittings and accessories tailored to diverse industrial needs. If you're working with pneumatic tools, understanding fitting options can significantly improve tool longevity and air system efficiency.
Pneumatic fittings serve as the vital link between components like air hoses, tubing, valves, and cylinders. Their primary purpose is to provide leak-free and secure connections that maintain consistent air pressure throughout the system. In high-speed production lines or environments where downtime is costly, a faulty fitting can lead to pressure drops, reduced tool performance, and even safety hazards.
Compared to hydraulic fittings, pneumatic fittings are designed for lower pressure ranges but require more precise sealing. Their lighter construction and tighter connections make them ideal for systems where flexibility and responsiveness matter. In particular, pneumatic tools benefit from fittings that can be installed and disconnected quickly without compromising pressure integrity.
Pneumatic fittings are not one-size-fits-all. They must match the exact demands of your application—taking into account air pressure, environmental conditions, and ease of maintenance. That’s why selecting the right fitting is not just a technical choice but a strategic one, especially for businesses relying on air-powered systems.
A wide variety of pneumatic fittings are available to match different tubing types, pressure requirements, and applications. Here are the most commonly used types:

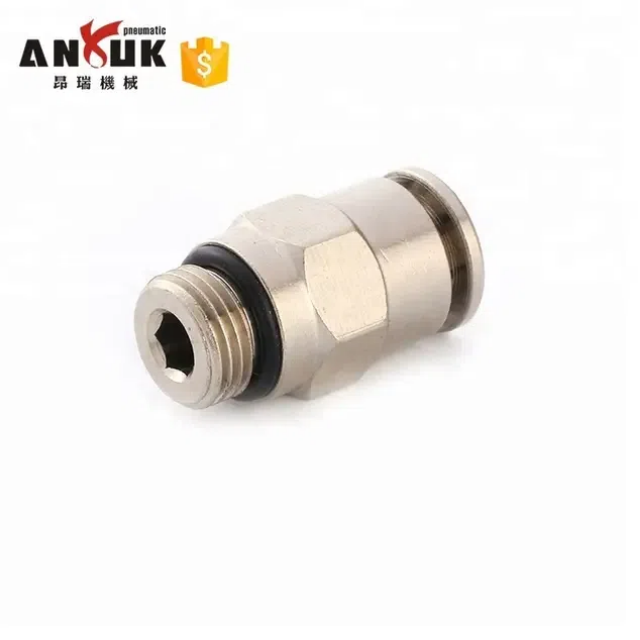

Also known as one-touch fittings, these are incredibly popular for their ease of use. With no tools required, a simple push secures the tube in place. This makes them ideal for quick installations, maintenance work, or systems that require frequent component changes. While convenient, they’re best used in moderate pressure environments and require a clean tube cut for secure sealing.
Threaded fittings come in various standards such as NPT, BSPT, and BSPP. These are widely used in fixed installations and high-pressure systems. The thread design, combined with sealing tape or paste, ensures a tight, secure connection. NPT threads are tapered, providing a mechanical seal, while BSPP threads are parallel and usually require an O-ring. Understanding the threading standard is essential to avoid mismatches and leakage.
Compression fittings are reliable for applications requiring strong, durable connections. These consist of a nut and ferrule that compress the tubing when tightened. They’re perfect for semi-permanent installations where disassembly is occasional but still necessary. Their reusability and high pressure tolerance make them a dependable choice for industrial pneumatic systems.
These fittings are commonly used with flexible tubing and hoses. The barbs grip the inside of the hose, while an external clamp secures the connection. Barbed fittings are especially suitable for vibration-heavy environments or where cost-efficiency is key. They’re simple, reliable, and often used in air systems where high flexibility is needed.
Quick-disconnect couplings allow tools or hoses to be rapidly connected or removed without system depressurization. This improves efficiency in dynamic workspaces, such as automotive shops or production floors. They’re available in various sizes and locking mechanisms to suit different flow rates and pressure levels.
Choosing the appropriate fitting for your pneumatic system involves more than just matching sizes. It requires a clear understanding of your operational environment and system demands.
First, consider the working pressure of your pneumatic tools and ensure the fittings can handle the system’s peak requirements. Using an under-rated fitting could lead to leaks or bursts under pressure.
Material selection is another key factor. Wenzhou Ang Rui Machinery Co., Ltd. offers fittings made from brass, plastic, iron, and zinc alloy—each suited for different conditions. Brass fittings, for example, are corrosion-resistant and ideal for long-term installations. Plastic fittings are lightweight and cost-effective for temporary setups, while zinc and iron offer strength in rugged applications.
The fitting’s compatibility with tubing or hose material is also crucial. A mismatch could cause poor sealing or wear over time. Always ensure the fitting diameter, connection type, and thread standard align perfectly with your system.
Additionally, think about serviceability. If your application involves frequent tool changes or maintenance, opt for push-to-connect or quick-disconnect fittings. For static installations, threaded or compression fittings might be more suitable.
Proper installation ensures the performance and lifespan of pneumatic fittings. Begin with clean, debris-free tubing. If using push-to-connect fittings, ensure the tube is cut square and free from burrs. Misaligned or jagged cuts can lead to poor sealing and eventual leaks.
When working with threaded fittings, always use the correct sealant. PTFE tape is commonly used for NPT threads, while O-rings might be required for BSPP fittings. Be cautious not to overtighten, as this may damage the threads and compromise the seal.
Regular maintenance is key. Check for leaks using soapy water or ultrasonic detection tools. Replace damaged or worn-out fittings promptly to avoid system failure. Also, avoid unnecessary bending or pulling of hoses at connection points to reduce stress on the fittings.
Proper training for installation and routine inspections can go a long way in preventing costly downtime and maintaining optimal system pressure.
Pneumatic fittings are widely used across industries, and selecting the right type can directly improve workflow efficiency. In automotive repair shops, for instance, quick-connect couplings allow air tools to be switched out swiftly without halting operations. This saves time and boosts productivity.
In industrial automation, push-to-connect fittings are commonly used in sensor systems, actuators, and valves. Their fast installation and minimal space requirements make them ideal for compact systems. Additionally, their low leak rate helps maintain accurate pressure control.
Food and beverage production lines often use FDA-compliant tubing and fittings. At Wenzhou Ang Rui Machinery Co., Ltd., our hose products meet RoHS and FDA standards, ensuring safe, sanitary operation in food-grade environments.
Construction and woodworking sectors also benefit from durable, high-flow fittings that withstand dust, vibration, and tough working conditions. Selecting the appropriate fitting ensures both worker safety and tool efficiency, regardless of the industry.
One of the most common errors is mismatching thread types—such as connecting NPT to BSPP without proper adapters. This can lead to leaks or even equipment damage. Always verify the thread standards before installation.
Another issue is using fittings made of incompatible materials. For instance, using plastic fittings in high-pressure or high-temperature applications can lead to deformation or failure. Similarly, installing fittings without proper sealing—especially with threaded types—can cause persistent air loss.
Over-tightening is another frequent mistake. While it may seem logical to tighten fittings to prevent leaks, it often causes thread damage or cracking in plastic bodies. Follow manufacturer torque recommendations to avoid this issue.
Finally, neglecting maintenance can reduce fitting lifespan and increase operating costs. Regularly inspect fittings for wear, check pressure consistency, and address leaks promptly.
Pneumatic fittings are more than just accessories—they are essential to the safety, performance, and longevity of pneumatic tools. Understanding the different types of fittings, choosing the right one for your application, and maintaining them properly can have a profound impact on your entire system’s efficiency. At Wenzhou Ang Rui Machinery Co., Ltd., we are proud to provide durable, precision-made pneumatic fittings and components designed to support a wide range of industrial applications. If you are working with pneumatic tools, investing in the right fittings is not just smart—it’s necessary for success.
To learn more about our pneumatic fittings or get advice on selecting the right products for your application, contact us today. We’re here to help you optimize your pneumatic systems with reliable, high-quality solutions.
